How to Connect Pipe Joints: A Comprehensive Guide

Connecting pipe joints is a fundamental skill in plumbing, construction, and mechanical systems. Whether working on residential water supply lines, industrial piping, or irrigation systems, understanding the methods, materials, and best practices for joining pipes is essential for ensuring leak-proof, durable, and safe installations.

What Are Pipe Joints?

Pipe joints are the points where two or more pipes or fittings are connected to create a continuous pipeline. These joints can be permanent or removable, depending on the system’s requirements. Properly connecting pipe joints ensures the structural integrity of the piping system and prevents leaks and failures.

Types of Pipe Joints

There are several types of pipe joints, each suited for specific materials and applications:

Threaded Joints
Used primarily with metal pipes like steel or galvanized iron, threaded joints involve screwing male and female threaded ends together with the help of sealing compounds.

Welded Joints
Common in steel pipelines, welded joints provide strong, permanent connections by melting the pipe ends together.

Flanged Joints
Flanged joints use bolted flanges to join pipes, often with a gasket in between to ensure sealing. These joints allow for easy disassembly.

Soldered/Brazed Joints
Often used with copper pipes, soldering and brazing involve melting a filler metal to join pipe ends securely.

Push-Fit or Compression Joints
Popular in plumbing for quick connections without special tools, these joints use a compression ring and nut or a push-fit mechanism to seal the pipes.

Solvent Welded Joints
For PVC and CPVC pipes, solvent cement chemically fuses the pipe and fitting, creating a permanent bond.

Materials Used in Pipe Joints

Metal Pipes: Steel, stainless steel, copper, brass, galvanized iron.

Plastic Pipes: PVC, CPVC, PEX, HDPE.

Sealing Materials: Teflon tape, pipe dope (thread sealant), gaskets, O-rings.

Step-by-Step Guide to Connecting Pipe Joints

1. Preparation
Measure and Cut: Accurately measure the length of pipe needed and cut using appropriate tools like pipe cutters or saws.

Clean Pipe Ends: Remove burrs and dirt to ensure a smooth joint.

Dry Fit: Assemble the joints temporarily to check alignment and fit.

2. Choose the Right Joint Method
Consider pipe material, pressure requirements, environmental conditions, and accessibility.

3. Threaded Pipe Joints
Wrap Teflon tape: Wrap male threads with PTFE (Teflon) tape clockwise 3-5 times to ensure sealing.

Apply Pipe Dope: Optionally, apply pipe joint compound to improve seal and lubrication.

Tighten: Screw the pipes or fittings together hand-tight, then use a wrench to finish tightening — avoid over-tightening to prevent damage.

4. Welded Pipe Joints
Clean and Align: Clean pipe ends, align them precisely.

Tack Weld: Apply small welds to hold pipes in place.

Complete Weld: Perform full circumferential welding, ensuring penetration and strength.

Inspect: Check for defects and leaks.

5. Flanged Pipe Joints
Position Flanges: Align flanges with gasket in between.

Insert Bolts: Insert bolts evenly around the flange.

Tighten Bolts: Tighten bolts in a criss-cross pattern to evenly compress the gasket.

6. Soldered/Brazed Joints (Copper Pipes)
Clean and Flux: Use a wire brush to clean pipe ends and apply flux.

Heat Joint: Heat the pipe and fitting evenly with a torch.

Apply Solder: Touch solder to the joint; it will melt and flow through by capillary action.

Cool and Clean: Allow to cool naturally, then clean off excess flux.

7. Push-Fit and Compression Joints
Insert Pipe: Push pipe fully into the fitting.

Tighten Compression Nut: If applicable, tighten the compression nut by hand and then with a wrench.

8. Solvent Welded Joints (PVC/CPVC)
Apply Primer: Use primer on pipe and fitting ends.

Apply Solvent Cement: Apply cement evenly on both pipe and fitting.

Assemble Quickly: Push pipe into fitting with a twisting motion and hold for a few seconds.

Cure Time: Allow recommended curing time before pressurizing.

Tips for Effective Pipe Joint Connections

Always use the correct type of joint and materials for the pipe system.

Ensure surfaces are clean and free from oil, dust, or moisture.

Avoid over-tightening threaded joints to prevent stripping threads.

Follow manufacturer guidelines for solvent cement drying times.

Use appropriate safety gear, especially when welding or soldering.

Pressure test joints before final use to ensure leak-proof installation.

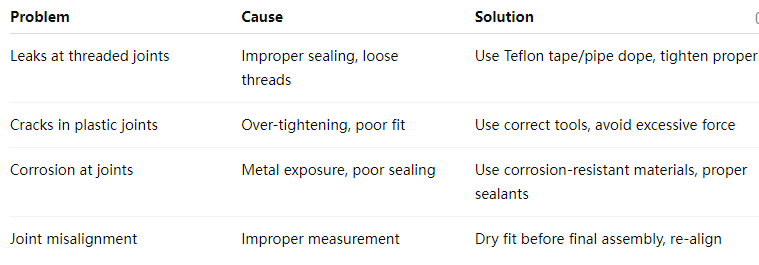

Common Problems and Solutions in Connecting Pipe Joints

Conclusion

Mastering how to connect pipe joints is crucial for anyone involved in plumbing, HVAC, or industrial piping systems. Understanding the types of joints, materials involved, and step-by-step techniques will ensure reliable, long-lasting connections that prevent leaks and failures. Whether using threaded, welded, flanged, or push-fit joints, applying best practices and using the correct materials will make any piping project a success.
